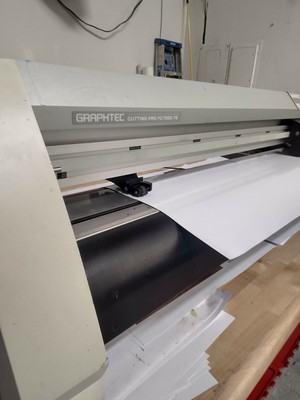

Graphtec FC3100-60 Vinyl Cutter Setup instructions

SignTools Settings

After installing CorelDRAW the next step is to install SignTools. Follow the instructions on page 4 and 5 of the SignTools 4 User Guide.

Once you have installed SignTools, open Corel Draw and click on the Application Launcher (see picture below) and choose SignTools 4.

Next click on the 'Cut' button and then the 'Cut Settings' Button. Select the Graphtec FC3100-60 from the 'Cutter' drop down box and select your port.
If you are using a Serial (Com) port click on the “Properties” button and set the following settings:-

Bits per second : 9600
Data bits: 8
Parity: None
Stop bits: 1
Flow Control: Hardware

USB Port Setup

If you are usinga USB connection you may have to install the Graphtec Windows driver that comes with the plotter, so that the USB port can be selected in SignTools.

Plotter Configuration
Graphtec plotters use two languages HP-GL and GP-GL. You must set your plotter to HP-GL emulation through the plotter's control panel. Please refer to plotter's User Manual for more information.

Plotter Cable

Please ensure that your Serial (Com) cable is a RS 232-C cable. SignTools will not communicate with your Gerber plotter with a different cable. If you are unsure if your cable is a RS232-C cable, contact your plotter distributor.

CorelDraw Settings

In CorelDraw's Layout menu select Page Setup. A dialog box will appear. Set Width to 3200mm (126 inches) and Height to 585mm (23.4 inches).
Ensure that you are using a Landscape page.

To set this as a default page in CorelDRAW click on the Tools menu and choose Options. Click on the word Document on the left hand side and ensure all of the options are ticked and click on the OK button.

Graphtec Cutter Software

To cut any object in CorelDraw, simply place on the page in the bottom left corner. If you wish to cut in a portrait fashion simply rotate your graphics.

Additional note

SignTools 4 cuts from the bottom left of the page either manually place object(s) in the bottom left of the CorelDRAW page or use the 'Vinyl Saver' tool with the sliding bar all the way to the left.
